0-40 Bottles/min Paste Filling Machine for Cosmetic High Accuracy

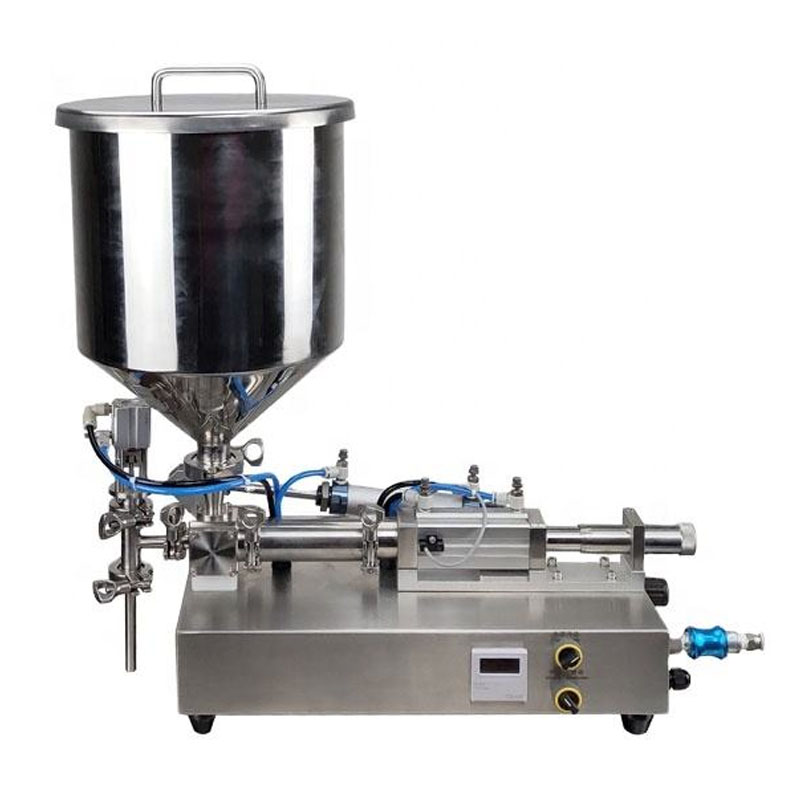

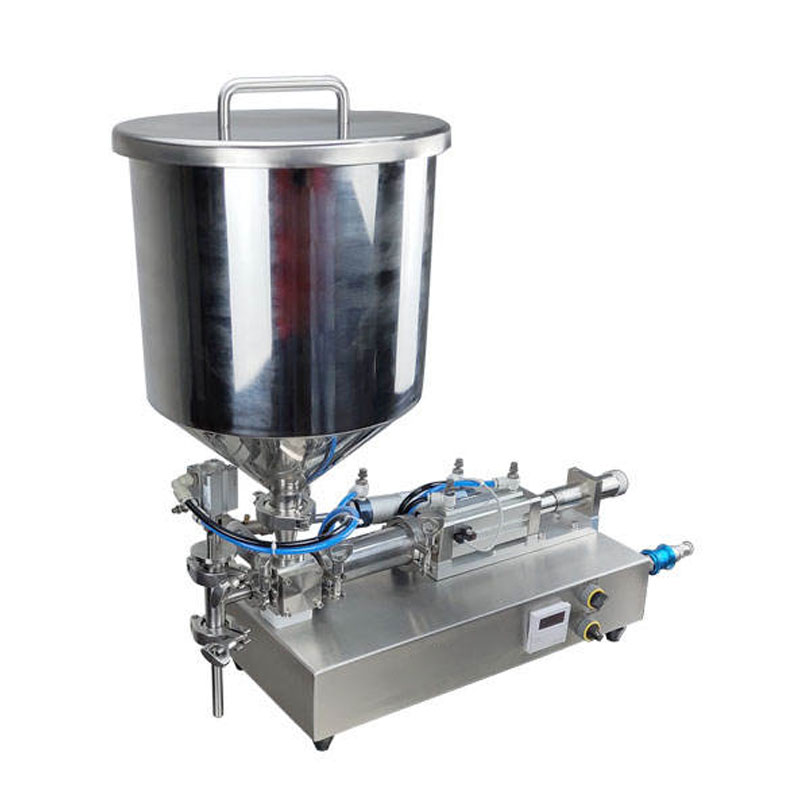

Product introduction of Paste Filling Machine

The paste filling machine is a compact, horizontal pneumatic filling system designed for precise volumetric dosing of medium to high viscosity liquids. Built with durable 304 stainless steel, it supports a filling capacity of up to 1200 bottles per hour and accommodates materials ranging from 1000 to 100,000 CPS, including creams and particle-containing pastes.

This equipment addresses the need for accurate, clean, and efficient filling in small-batch or laboratory-scale production. It is widely suitable for industries such as cosmetics, pharmaceuticals, food processing, and chemicals. Ideal for manufacturers, laboratories, and R&D environments, it ensures reliable performance in both production and testing processes.

Working Principle

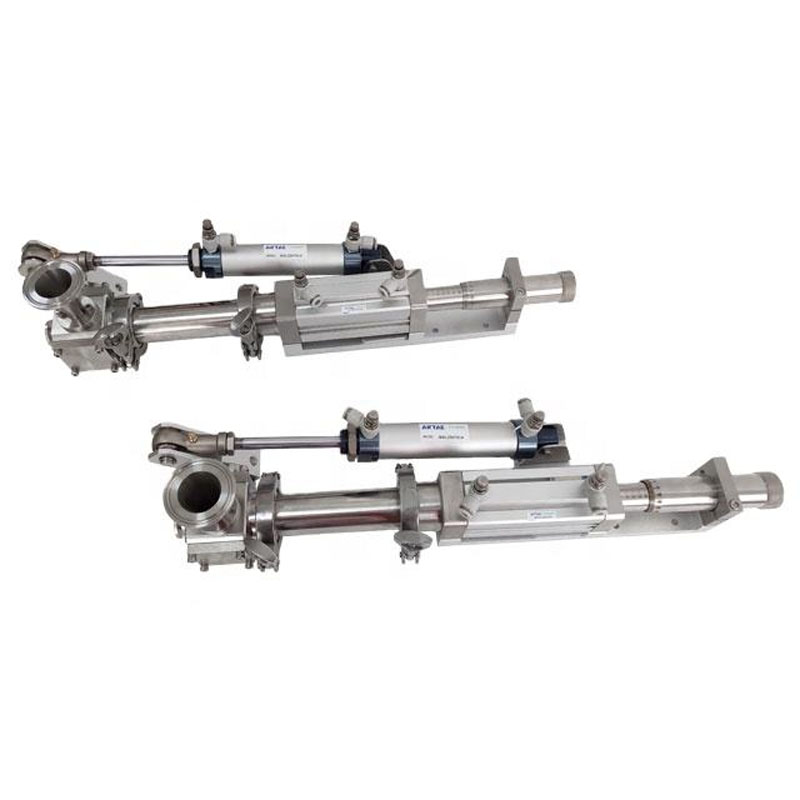

The paste filling machine operates using a pneumatic-driven ceramic piston pump system. Compressed air powers the piston to draw liquid from the hopper into the pump chamber, then accurately dispense it through the filling nozzle into containers. The volumetric metering mechanism ensures consistent fill volumes, while adjustable stroke control allows precise regulation of filling quantity. Excess material or pressure is stabilized within the system to maintain smooth, repeatable filling performance.

Product Parameter Table

Pump head	High purity ceramics
Filling accuracy	±0.8%
Manufacturing speed	0-40 Bottle/min
Size of Host Machine	500×550×650 mm
Power	AC 220 V,50-60 Hz,50 W
Air pressure	0.4-0.6 Mpa
Filling range	10-100 ml

Main Features

• High-precision ceramic piston pump ensures consistent filling accuracy for viscous liquids and minimizes wear during long-term operation.

• Horizontal pneumatic filling design provides stable performance, easy operation, and improved efficiency in small to medium production environments.

• Compact desktop structure saves workspace while maintaining high output, making it ideal for laboratories and limited production areas.

• Adjustable and customizable filling nozzles allow compatibility with various bottle sizes and filling volumes for flexible applications.

• Constructed with 304 stainless steel, ensuring corrosion resistance, easy cleaning, and compliance with hygiene requirements.

• Quick assembly structure enables fast disassembly and cleaning, reducing downtime and improving operational efficiency.

Application Scenarios

• Cosmetic industry: filling creams, lotions, and skincare products into small containers.

• Pharmaceutical field: dosing syrups, oral liquids, and laboratory reagents.

• Food processing: filling sauces, honey, and other viscous food products.

• Chemical industry: handling viscous liquids, solvents, and industrial pastes.

• Laboratory use: precise liquid filling, sample preparation, and testing applications.

FAQ

Q1: What types of liquids can this machine handle?
A: It is suitable for medium to high viscosity liquids, including creams, gels, pastes, and particle-containing materials.

Q2: What is the filling accuracy level?
A: The ceramic piston pump ensures high precision and consistent volumetric filling performance.

Q3: Is it easy to clean and maintain?
A: Yes, the quick assembly design and stainless steel structure make cleaning fast and convenient.

Q4: Can it fit different bottle sizes?
A: Yes, the filling nozzle is adjustable and can be customized for different container sizes and volumes.

Q5: What industries is this machine best suited for?
A: It is widely used in cosmetics, pharmaceuticals, food processing, chemical production, and laboratory applications.
