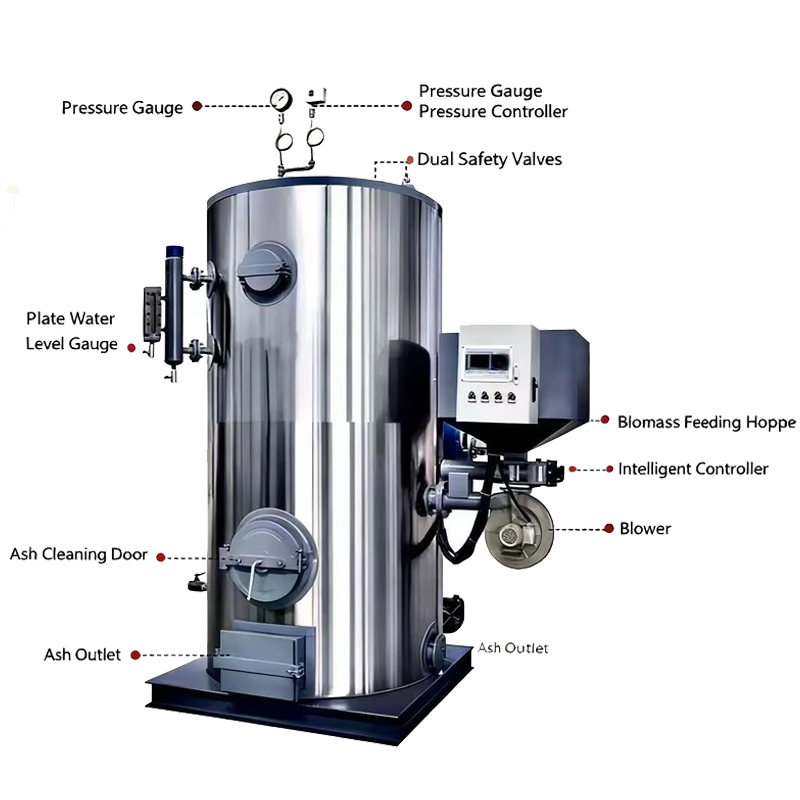

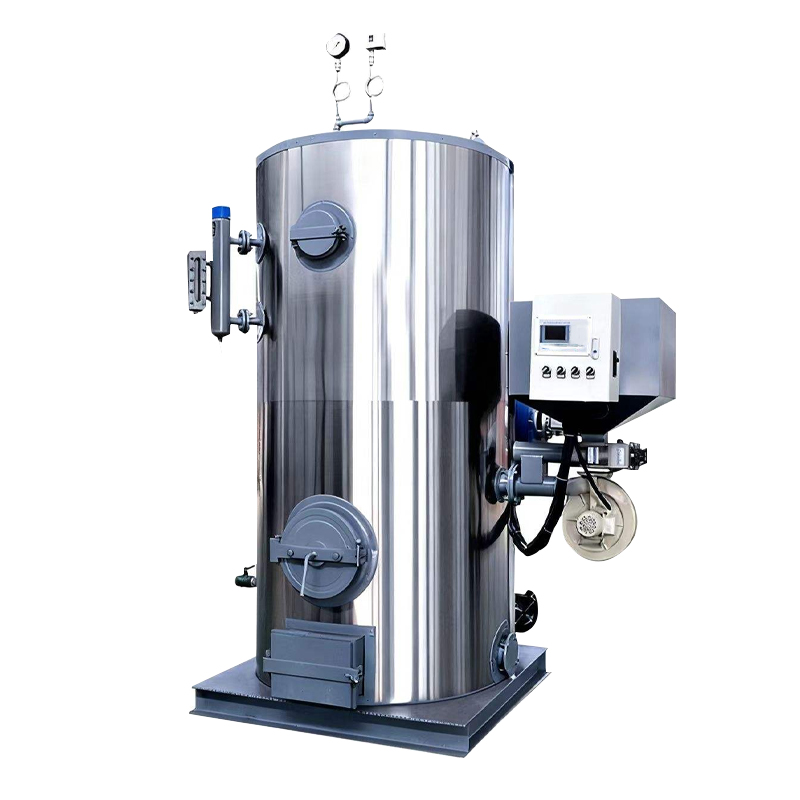

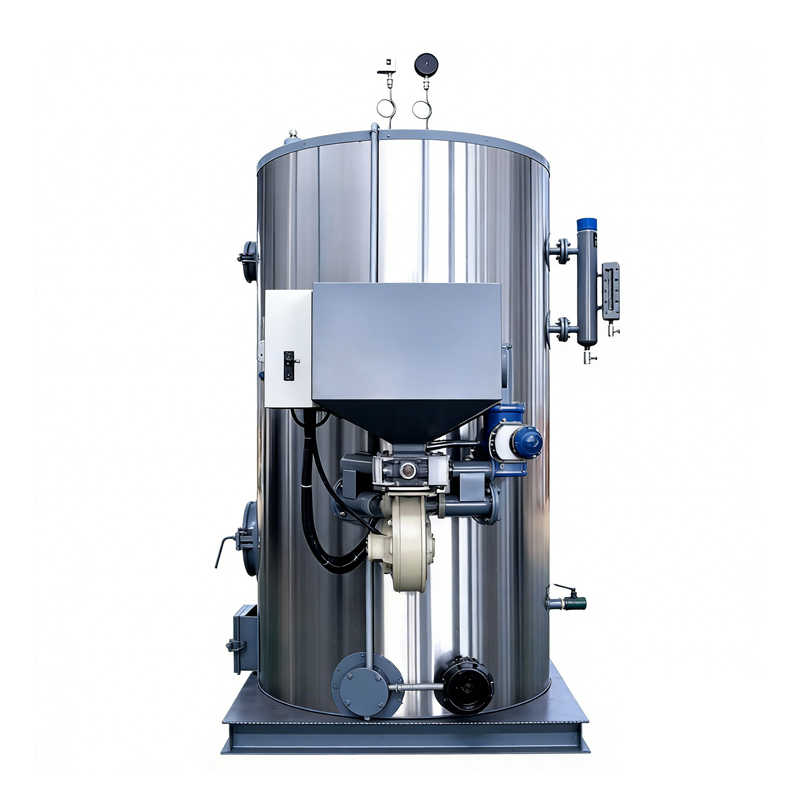

0.5 T/H Vertical Biomass Fire Tube Steam Generator

Vertical Biomass Steam Boiler Product Description

The 0.5 T/H vertical biomass fire tube steam generator is designed for efficient steam production using renewable biomass fuels such as wood pellets, palm shells, and agricultural waste. The fire tube structure improves heat transfer efficiency and ensures stable steam output.

With its compact vertical design and automatic control system, this steam generator provides reliable, energy-saving, and environmentally friendly steam supply for industrial applications.It is an ideal solution for factories seeking low fuel cost and sustainable steam generation.

Technical Specifications

Parameter	Value
Rated evaporation capacity	0.5 (t/h)
Rated working pressure	0.4/0.7/1.0/1.25 (MPa)
Inlet water temperature	20℃
Chimney diameter	219 (mm)
Boiler thermal efficiency	85 (%)
Maximum transport weight of boiler	2.5 tons
Dimensions	1.4 × 1.4 × 2.4 m

Key Features

• Biomass fuel compatibility：Supports wood pellets, palm shells, and other biomass fuels.
• Fire tube structure：Efficient heat transfer and stable steam generation.
• High thermal efficiency：Optimized combustion reduces fuel consumption.
• Compact vertical design：Space-saving and easy installation.
• Automatic operation：Easy control and safe operation.
• Eco-friendly solution：Reduces emissions and operating costs.

Applications

• Food processing factories
• Textile industry
• Agricultural processing
• Palm oil plants
• Chemical industry
• Industrial heating systems

FAQ

• Q1: What fuel can be used?
  Biomass fuels such as wood pellets and palm shells.
• Q2: What is the steam capacity?
  The capacity is 0.5 tons per hour.
• Q3: Is it environmentally friendly?
  Yes. Biomass fuel reduces emissions.
• Q4: Is installation easy?
  Yes. The vertical design saves space.
• Q5: Do you provide support?
  Yes. Technical support is available.

Why Choose Our Biomass Steam Generator

• Low fuel cost operation
• Eco-friendly steam production
• High efficiency heat transfer
• Compact and reliable design
• Easy installation and maintenance
• Customizable configurations
