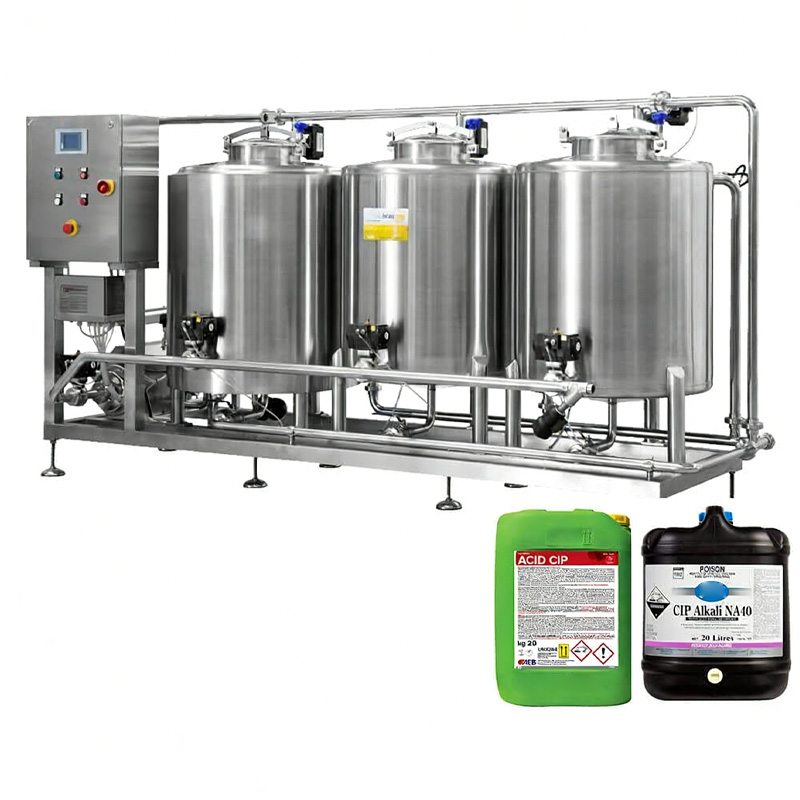

1000L Automatic CIP System for Food & Beverage Factory
The 1000L Automatic CIP System efficiently cleans food and beverage tanks, pipelines, and equipment. Featuring fully automated cleaning cycles including pre-rinse, alkali, acid, and post-rinse, it removes residues, kills bacteria, and prevents cross-contamination. Equipped with SUS316 stainless steel construction and PLC control, it reduces labor, minimizes downtime, and supports sustainable water and chemical use. Ideal for dairy, juice, and beverage production lines, the system ensures consistent hygiene, improves product quality, and extends equipment lifespan.
$9.00
Compare1000L Automatic CIP System Product Introduction
The 1000L Automatic CIP System is a food-grade, sanitary cleaning solution for tanks, pipelines, and equipment in food and beverage factories. Equipped with SUS316 stainless steel construction and PLC control, the system provides fully automated cleaning cycles including pre-hot water rinse, alkali cleaning, post-rinse, acid cleaning, and final rinse. This ensures thorough removal of residues, microbes, and organic waste without disassembling equipment, reducing labor intensity and downtime. The CIP system is suitable for dairy, juice, and beverage production lines, offering mobile or fixed installation options, and supports sustainable water and chemical use. Its precise control of temperature, pH, and cleaning time guarantees consistent hygiene, improved product quality, and extended equipment lifespan.
Technical Specifications：
| Product Name | 1000L CIP Cleaning System |
| Weight | 1300 kg |
| Processing | Washer |
| Core Components | PLC, Pump |
| Voltage | Customized |
| Power (W) | 3 kW |
| Dimension (L×W×H) | 4500 × 2100 × 2300 mm |
| Heating Type | Steam |
| Material | SUS304, 3-layer (Inside: 2.5 mm, Outside: 2 mm, Jacket: 50 mm) |
| Tank Body Size | 1000 L tanks: D1100 × H1220 mm; PE 50 L tanks: D400–500 mm |
| CIP Pump | Head: 36 m; Flow: 1440 L/h; Power: 1.5 kW |
| Control System | CIP Control Cabinet |
| Application | Milk, Juice, Carbonated Drinks, Beer, Tea Drinks |
Main features：
- Automatic Cleaning Cycles – Pre-rinse, alkali, acid, and post-rinse for thorough hygiene.
- Food-Grade Stainless Steel – SUS316 construction ensures durability and sanitary operation.
- PLC Control – Precise automation for temperature, pH, and cleaning time adjustments.
- Labor and Resource Saving – Reduces manual work, downtime, and water/chemical usage.
- Portable and Skid-Mounted Design – Easy installation, mobile or fixed for flexible applications.
Application Scenarios：
- Dairy Production Lines – Cleans milk, yogurt, cream, and dairy processing tanks efficiently.
- Juice Manufacturing – Sanitizes juice tanks, pipelines, and valves to prevent contamination.
- Beverage Factories – Suitable for soft drinks, water, and alcoholic beverage lines.
- Fermentation Tanks – Ensures thorough cleaning of tanks in breweries or similar production lines.
- Food & Beverage Processing Plants – Can be used for liquid food pipelines and storage tanks to maintain hygiene and safety.
FAQ for 1000L Automatic CIP System for Food & Beverage Factory
Q1: What is the core advantage of this 1000L automatic CIP system?
It adopts full-automatic program control, no manual on-site operation is required during cleaning. It can precisely control cleaning time, temperature and liquid concentration, which greatly improves cleaning efficiency and ensures consistent cleaning effect.
Q2: Which equipment in food and beverage factories can this CIP system clean?
It is specially designed for cleaning tanks, pipelines, valves, pumps and other sanitary equipment in food and beverage production lines, and is suitable for dairy products, juice, carbonated drinks, condiments and other production scenarios.
Q3: Is the material of the 1000L CIP system compliant with food safety standards?
Yes, the main contact parts of the system are made of SUS304/316L stainless steel, which meets food-grade hygiene requirements, is corrosion-resistant and easy to clean, and avoids secondary pollution of materials.
Q4: Can the cleaning process of this CIP system be customized?
Of course, it supports customized cleaning procedures. You can set different cleaning cycles, acid-alkali soaking time and flushing times according to the characteristics of different food and beverage production residues.
