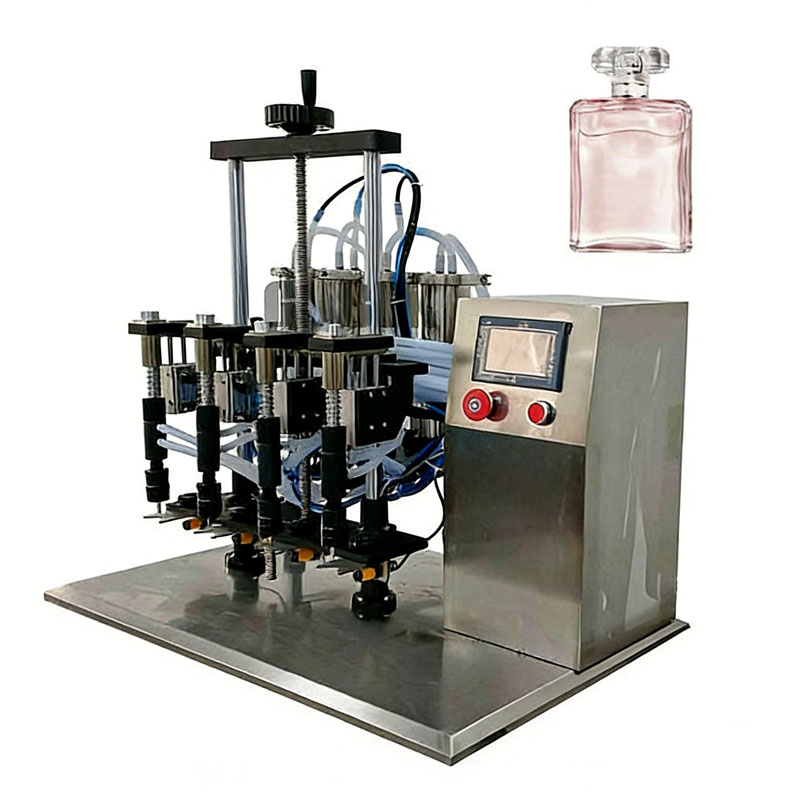

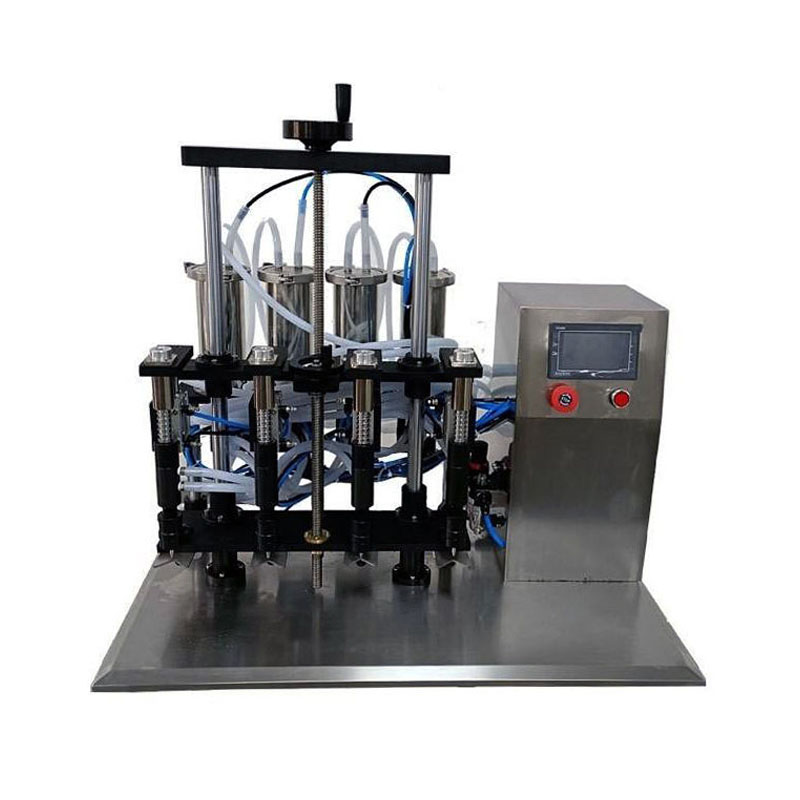

4-Head Vacuum Liquid Filling Machine For Perfume Oil Bottle

Product introduction of Vacuum Liquid Filling Machine

The vacuum liquid filling machine is a precision filling system designed for liquid products requiring accurate level control and clean filling. Built with 304 stainless steel for product-contact parts, it ensures hygienic and durable operation. The system is suitable for filling perfumes, essential oils, and other cosmetic liquids where overflow and fragrance loss must be minimized. It solves common issues such as inconsistent filling levels, spillage, and air contamination. This equipment is ideal for cosmetic manufacturers, fragrance brands, and small to medium production facilities seeking reliable and efficient liquid filling automation.

Working Principle

The machine operates based on a vacuum constant liquid level filling principle. When a bottle is placed under the nozzle, the bottle sensor detects it and activates the filling process. Liquid is drawn from the storage tank through a suction pipe under negative pressure and flows into the bottle. As the liquid reaches the preset level, excess liquid is automatically sucked back into the reservoir, ensuring uniform fill height. The vacuum system prevents overflow and reduces exposure to air, while the barometer allows real-time adjustment of air pressure for precise control.

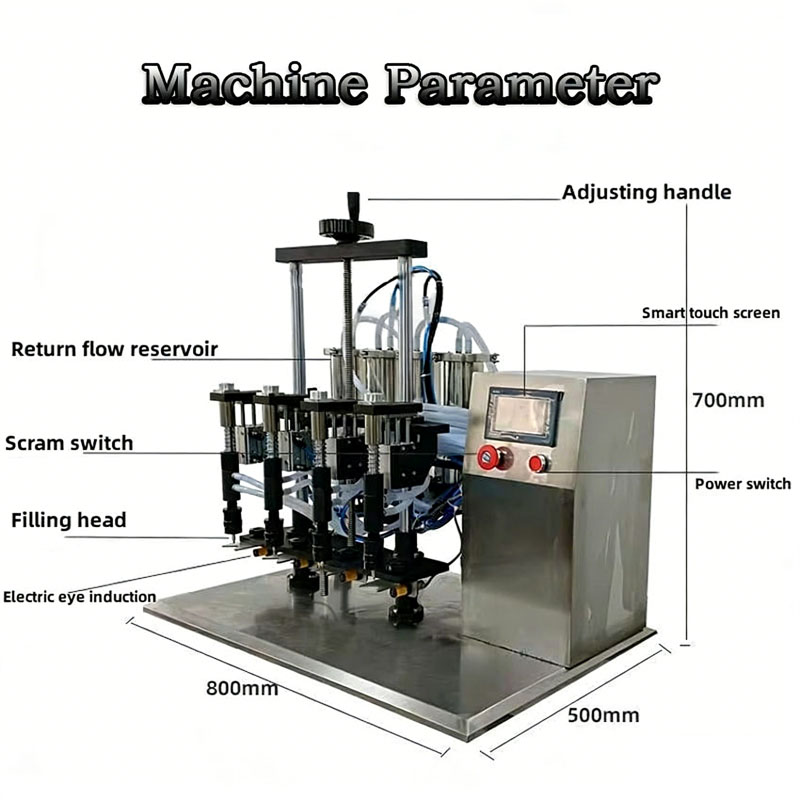

Product Parameter Table

Nozzles qty	4 heads
Min diameter(bottle hole)	≧4.5 mm
Max diameter (bottle hole)	≤20 mm
Voltage	220 V,50 Hz
Machine power	About 50 W
Filling range	About 5-500 ml
Filling speed	20-60 bottles/min (4 nozzles)
Machine air pressure	0.4-0.8 MPa
Applicable bottle height	<200 mm
Adjustable liquid surface distance	About 30 mm
Machine size	About 800×500×700 mm
Machine weight	45 kg

Main Features

• Utilizes vacuum constant liquid level filling technology to ensure all bottles maintain the same visible fill level regardless of shape or volume differences.

• Equipped with four filling nozzles featuring a 1.5 mm diameter for precise and controlled liquid dispensing with high accuracy.

• Each nozzle includes a spring structure that helps prevent bottle damage caused by air pressure during the filling process.

• Constructed with 304 stainless steel contact parts, ensuring hygienic filling and compatibility with cosmetic and fragrance liquids.

• Integrated bottle sensor automatically detects container presence and triggers filling to reduce manual intervention and improve efficiency.

• Includes adjustable barometer for real-time air pressure monitoring, allowing operators to fine-tune filling conditions for optimal performance.

Application Scenarios

• High accuracy with minimal product waste and consistent results.

• Prevents overflow and reduces fragrance loss during filling.

• Simple operation with no training required and multilingual support.

• Compact design suitable for small and industrial production.

• Stable pneumatic system with low noise and energy saving.

• Versatile for perfume, essential oil, and cosmetic liquids.

FAQ

Q1: What liquids can this machine fill?
It is suitable for low-viscosity liquids such as perfume, essential oil, cosmetic liquids, and similar free-flowing products.

Q2: Does the machine require an air compressor?
Yes, the system uses pneumatic control, and an external air compressor is required for operation.

Q3: Can the filling volume be adjusted?
The filling is controlled by liquid level using vacuum principles, and the operator can adjust parameters through the control panel.

Q4: Is training required to operate the machine?
No, the simple operation panel allows easy setup and use without extensive operator training.

Q5: Can it prevent liquid spillage and fragrance loss?
Yes, the vacuum filling system helps prevent overflow and minimizes fragrance evaporation during filling.
