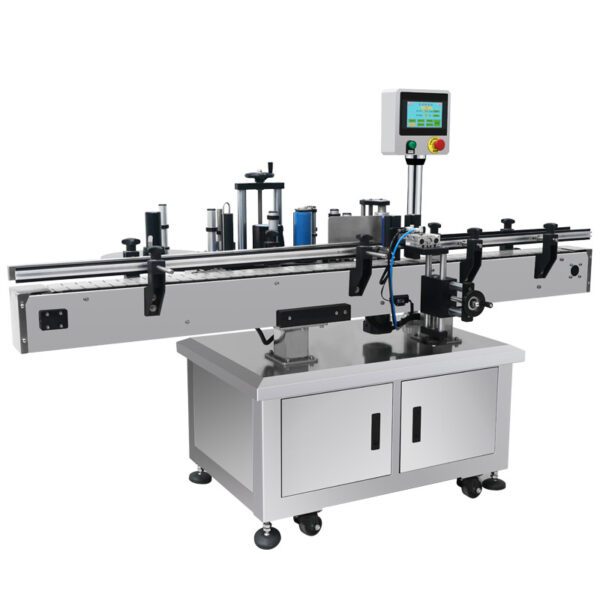

Automatic Labeling Machine Glass Plastic Round Bottle 25-40 Bottles/Min Bottle Self-adhesive Automatic Labeling Machine
- Production speed：25-40 bottles/min
- Labeling method：Single label / double label
- Label height：15-130mm (customizable)
- Bottle range：30-100mm (customizable)
- Bottle range：30-200mm (customizable)
- Equipment material：SUS304
Note: Prices may vary depending on product capacity and quality.
$5,673.00
CompareTechnical Parameters of the Automatic Labeling Machine
| Model | 25-40 |
| Equipment size | 2000mm*1000mm*1350mm(L*W*H) |
| Equipment weight | 230kg |
| Production speed | 25-40 bottles/min |
| Labeling method | Single label / double label |
| Label height | 15-130mm (customizable) |
| Bottle range | 30-100mm (customizable) |
| Bottle range | 30-200mm (customizable) |
| Equipment material | SUS304 |
| Air source pressure | 0.4-0.8mpa |
| Power supply | 220V/50HZ (customizable) |
Product details
- Reasonable design: labeling is fast and accurate.
- Induction accuracy: suitable for various labels and transparent labels, electric eyes imported from SICK in Germany.

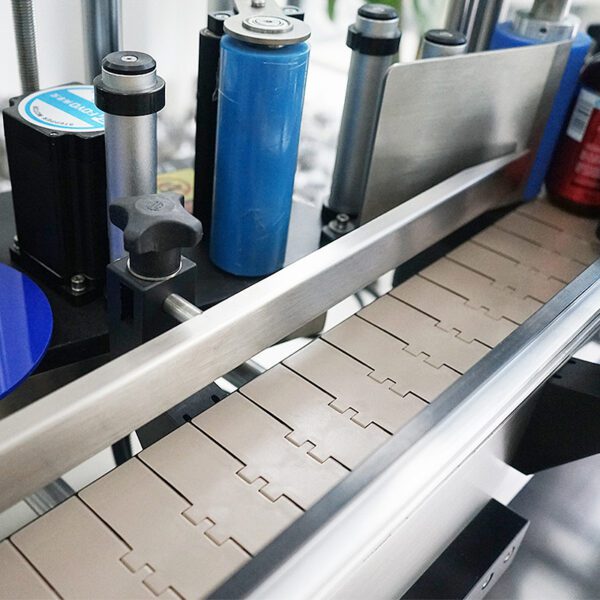

- Stable enough: the chain plate assembly line with frequency conversion speed regulation is adopted, the chain plate runs smoothly, and the speed can be adjusted according to needs.
- Bottle separation system: brand stepper motor frequency conversion speed regulation, so that each bottle enters the label neatly.
- The Japanese KEYENCE electric eye is used to detect the bottle very sensitively, and the equipment is still stable for a long time.
- Mitsubishi PLC programming, touch screen control.
