Weighing Packaging

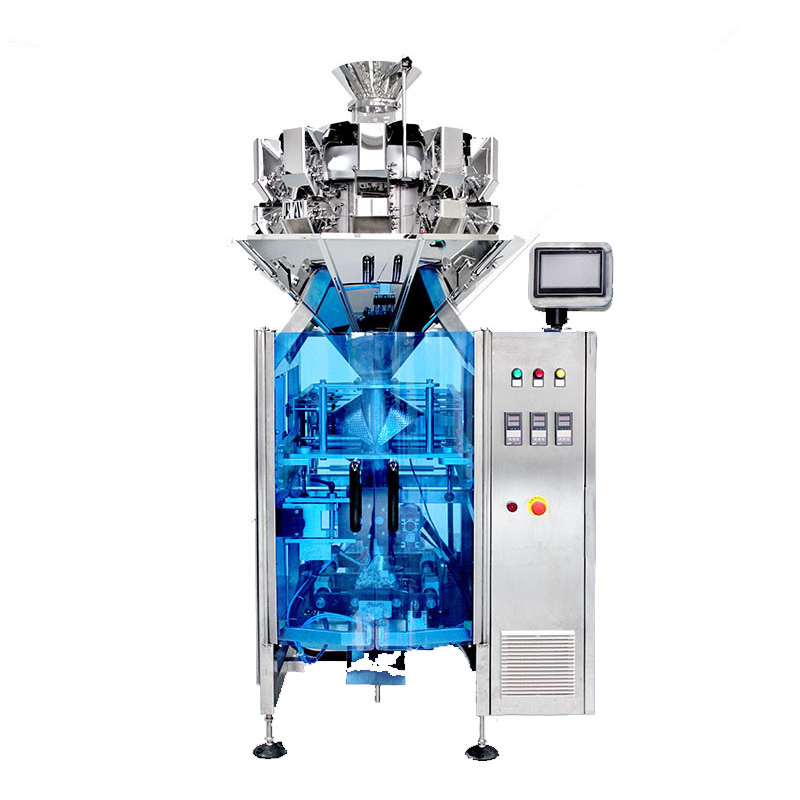

Vertical Weighing and Packaging All-in-one Machine Equipment Granular Food Micro Weighing Vertical Packaging Machine
NOTE: Prices may vary by product model and material.
- Control, fully automatically complete measurement, filling and bag making, date printing, and packaging output.
- The system is small in height and occupies a small area, and is suitable for various standard factories and customers with small sites.
- Microcomputer integrated control, touch-type human-machine operation interface, easy operation and maintenance.
- Cheap price, better economy, high cost performance and low maintenance cost.
- Automatic multi-head scale and vertical packaging machine combination, weighing and packaging integrated PLC program
$14,165.00
CompareTechnical Parameters of the Vertical Weighing and Packaging All-in-one Machine
| Weighing heads | 10 | 14 |
| Weighing range | 5-100g | 5-200g |
| Weighing accuracy | X(0.5) | X(0.5) |
| Maximum weighing speed | 65P/M | 100P/M |
| Hopper capacity | 500ml | 500ml |
| Applicable film width | 140-360mm | 140-360mm |
| Bag size | 60-250(L)×60-170(W)mm | 60-250(L)×60-170(W)mm |
| packaging speed | 65Bags/Min | 15-100Bags/Min |
| Film drive | servo motor | servo motor |
| Horizontal seal drive | cylinder | servo motor |
| Total working air source | 220V/3.8KW/50/60HZ | 220V/4.75KW/50/60HZ |
| Total air consumption | 0.4m³/min | 0.15m³/min |
| Overall size | 1306mm(L)×1059mm(W)×1920mm(H) | 1325mm(L)×1071mm(W)×2025mm(H) |
| Total machine weight | 550Kg | 600Kg |
Features of the Vertical Weighing and Packaging All-in-one Machine
- High-precision small target weighing, a combination of high precision and high speed.
- Automatic fault alarm system, safe and reliable work.
- Microcomputer integrated control, touch-type human-machine operation interface, easy operation and maintenance.
- Special sensors with high precision and high standard resolution are used to ensure excellent weighing accuracy.
- Equipped with a servo film-drawing system and a photoelectric tracking system, the bag length and color mark can be positioned accurately, quickly and efficiently.
- Cheap price, better economy, high cost performance and low maintenance cost.
- The system is small in height and occupies a small area, and is suitable for various standard factories and customers with small sites.
- The automatic multi-head weigher and the vertical packaging machine are combined into one, and the weighing and packaging are controlled by a PLC program, and the measurement, filling and bag making, date printing, and packaging output are fully automatic.
Related products
-
Weighing Packaging

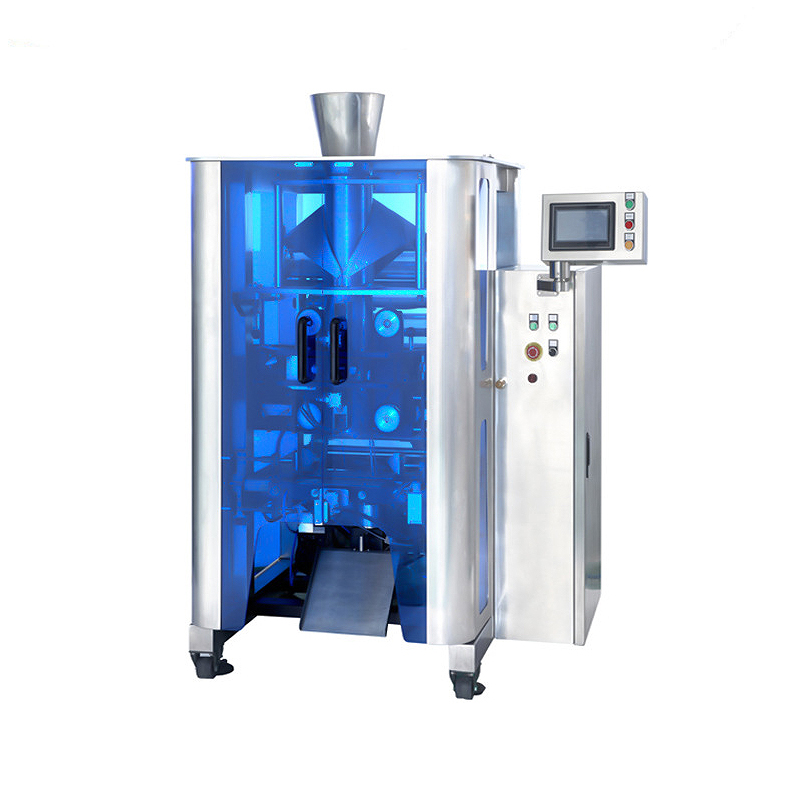

Vertical Granule Packaging Machine 15-70 bags/min Food Grade Stainless Steel Packaging Machinery for Food Industry
Weighing PackagingVertical Granule Packaging Machine 15-70 bags/min Food Grade Stainless Steel Packaging Machinery for Food Industry
NOTE: Prices may vary by product model and material.
- Applicable packaging materials: all kinds of snack foods, quick-frozen foods, milk powder, pet food, coffee, cereals, sugar, salt, puffed foods, rice, medicinal materials, tea, etc.
- Stainless steel or carbon steel frame.
- Seven-inch true color touch screen.
- PLC program control, equipped with fault display and alarm function.
SKU: n/a -
Weighing Packaging

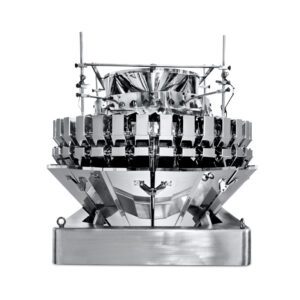

Multihead Weigher 32-Head 5-240g Weighing Range Nut Food Weighing Machine Quantitative Vertical Packaging Machine
Weighing PackagingMultihead Weigher 32-Head 5-240g Weighing Range Nut Food Weighing Machine Quantitative Vertical Packaging Machine
NOTE: Prices may vary by product model and material.
- It is suitable for quantitative weighing of small quantities of granular materials with good fluidity, tea leaves, Chinese herbal medicines, seeds, beans, coffee beans, chocolate beans and nuts, etc.
- High-speed mode can be used for single material operation.
- It can meet the weighing and mixing requirements of a variety of 2-in-1, 3-in-1, and 4-in-1 formulas.
- High-precision, high-standard sensors are used.
- Intelligent fault alarm prompts make maintenance more convenient.
SKU: n/a -
Weighing Packaging
Multihead Weigher 24-Head 5-240g Weighing Range Mixed Particle Combination Weigher Automatic Intelligent Weighing Equipment
Weighing PackagingMultihead Weigher 24-Head 5-240g Weighing Range Mixed Particle Combination Weigher Automatic Intelligent Weighing Equipment
- It is suitable for weighing small particles such as tea leaves, seeds, coffee beans, chocolate beans, etc., and high-precision quantitative weighing of small measurement types.
- Weighing heads: 24
- Weighing range: 5-240g
- Weighing accuracy range: x (0.5)
- Maximum weighing speed: 60P/M(mixed with 4 materials)
- Hopper capacity: 0.5L
SKU: n/a -
Weighing Packaging

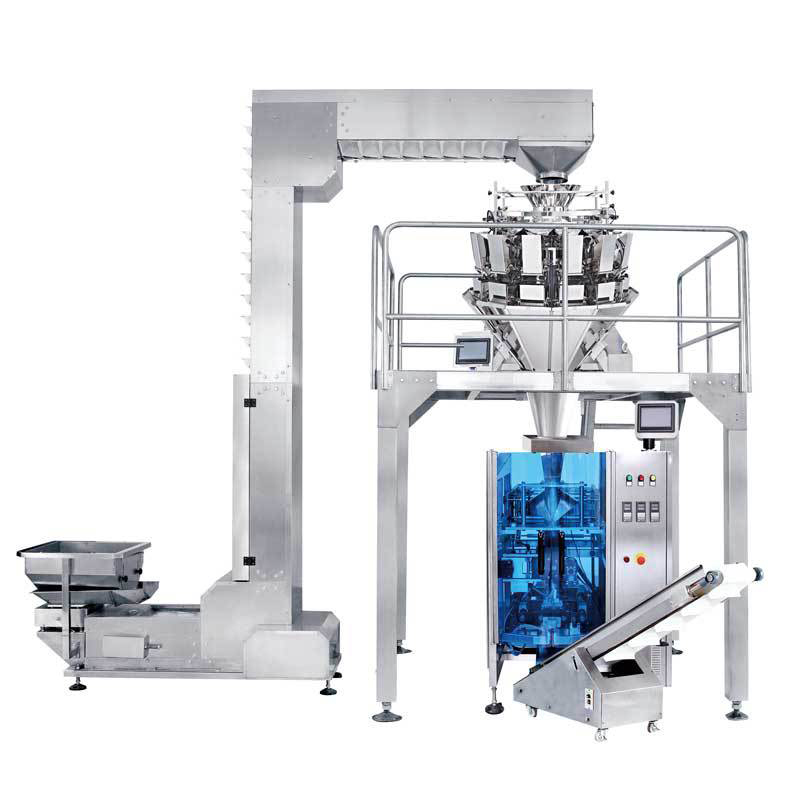

Fully Automatic Weighing Forming Filling Sealing Machine Dry Fruit Nut Vegetable Red Dates Packing Machine with Multihead Weigher
